In the last post in this series we explored methods of sharing blocks to other drawings (WBLOCK & Sharing Blocks to Other Drawings), so lets continue this theme with additional methods and also an Autodesk repository of pre-built content.

Toolbox taken by Florian Richter

Photo taken by Florian Richter

Tool Palettes

Tool Palettes can be thought of your own toolbox, which if you are like me has a collection of many things. My toolbox has a hammer, tape measure, crowbar, various screw drivers, wrenches, a flash light, and a completely random collection of nuts, bolts, screws, and washers. Which reminds me, when will the rest of the world get onto the robertson bit?

AutoCAD Tool Palettes are the same idea in that it can contain whatever content you want… blocks, images, xrefs, and any command. Tool Palettes are like having everything and the kitchen sink!

The Tool Palette is a standard AutoCAD palette in that it can be docked, anchored, resized, and auto-hid. You can have as many tabs (palettes) as you want, which provides the ability to categorize your content. Palette Groups collect tabs into groups so that you can quickly enable or hide various groups (combinations) of palettes.

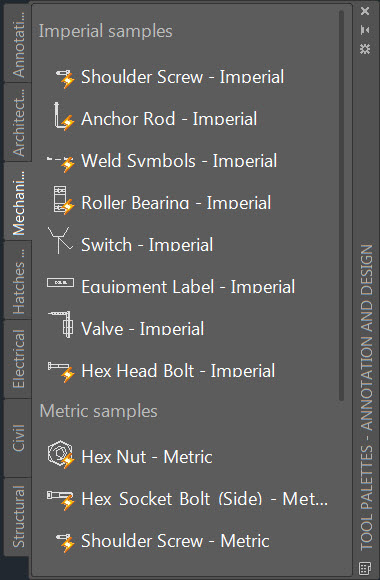

AutoCAD's Tool Palette

To create a new palette right click anywhere on the palette bar that runs down the side of the palette, select New Palette.

To add an object to the palette (say a block or a line) select the object in the drawing area so that grips are activated on the object. Click and drag (not on a grip point) the object onto the palette dropping it in the desired location.

The most important thing to remember is that the drawing the block is dragged-and-dropped from becomes the source drawing for the block insertion from the tool palette. This means that if this drawing is moved, renamed, or deleted the block link in the palette will stop functioning. Its a good idea to either use a template drawing for blocks or a drawing just for blocks. What I typically do is set up a “Tool Palettes Blocks” drawing and add all my blocks to it… and then use this drawing to build my blocks. One location – no worries about it disappearing.

Once the block is added to the tool palette comes the fun part. Right-click on any tool in the Tool Palette and select properties. With blocks you can adjust the insertion scale, rotation, and whether it should be exploded. Additionally you can tie the block scale to Auxiliary options Dimscale or Plot scale, meaning the block can scale accordingly to the active plot scale or dimension scale. You can even set the layer the block is inserted on or have it prompt for rotation after insertion. Very cool features, even consider having the same block in the palette multiple times but with different properties.

Tool Palette - Tool Properties

To insert the block simply select it in the palette and pick the insertion point in the drawing area. Right-clicking a block provides the Redefine option to redefine the existing block definition with the one contained in the Tool Palette.

Design Center

The Design Center is a tool to access drawing content. This content includes layers, blocks, Layouts, Dimension Styles and other drawing content. The Design Center may also contain application specific content, for example Layer Groups in AutoCAD Mechanical. The content can be accessed from drawings that are not open, one of the most important features of the Design Center.

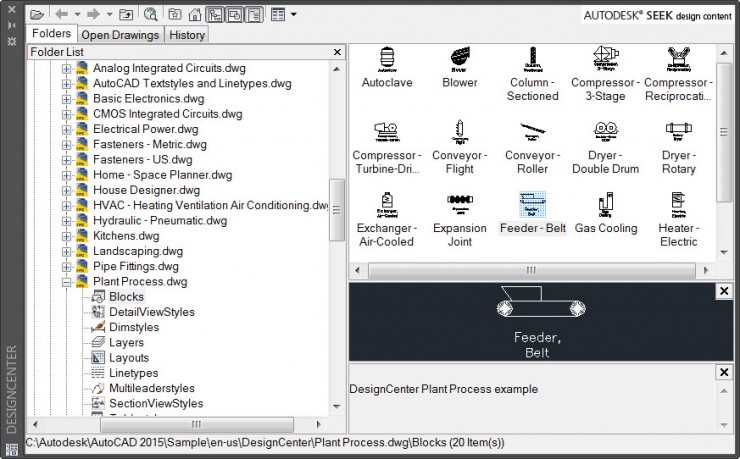

AutoCAD Design Center

Using the Design Center you can navigate Folders as if using Windows Explorer browsing to the desired directory  of drawings. Select the drawing and the type of content to browse. From the right-side panel find the content you wish to add to your active drawing and either drag-and-drop it or double-click to add to your drawing. The other tab, Open Drawings, allows for the browsing of any open drawing, to copy the content from it into the active drawing.

Like tool palettes if you attempt to insert a block in which the block name already exists it will use the definition of the drawing, NOT the Design Center. This means you may get a different result than you were expecting if the drawing block definition and design center block definition geometry differ. To force the the drawing definition to update to match the one selected in the Design Center right-click and select redefine or insert and redefine.

Another Tip… right-click on the Blocks section of the drawing and you can generate a tool palette containing all the blocks from the drawing.

Create a tool palette containing blocks from the Design Center

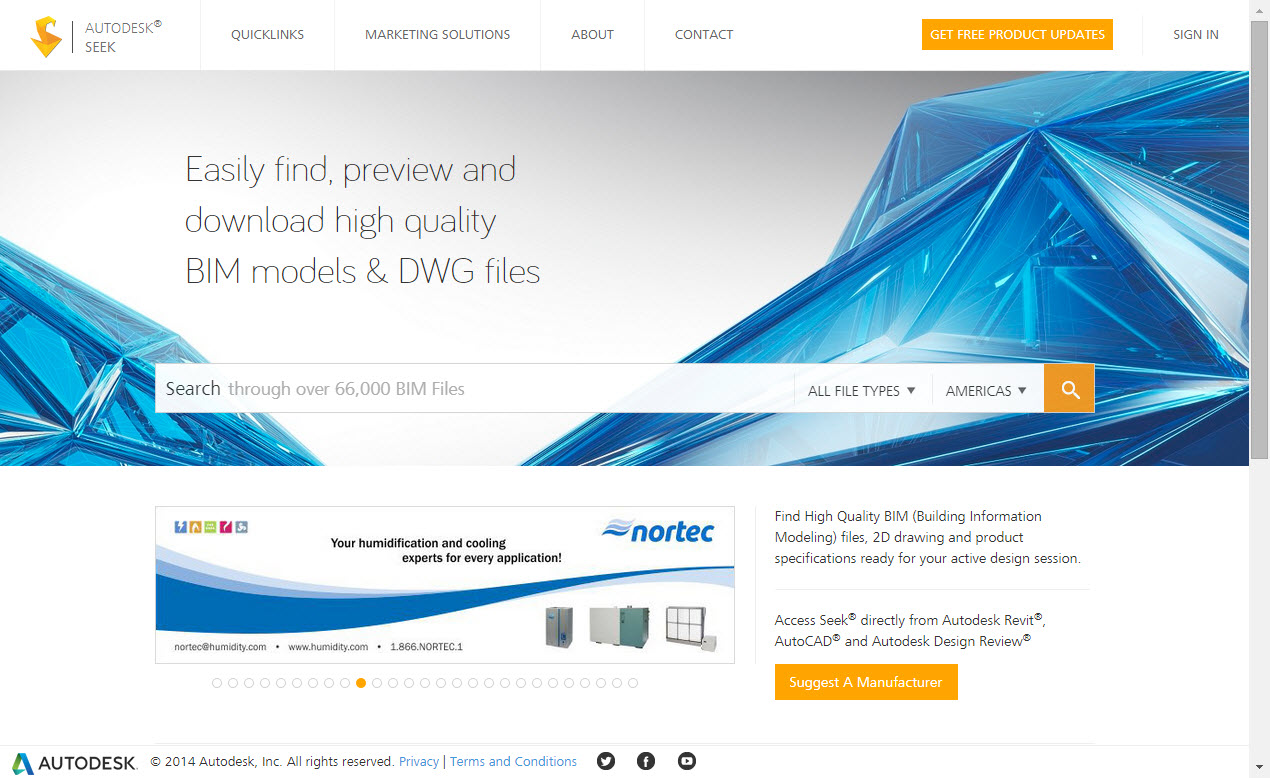

Autodesk Seek

Autodesk Seek

A link in the Design Center launches a browser to Autodesk Seek. An Autodesk managed webiste of BIM models and AutoCAD drawings (DWG). The drawings are vendor supplied meaning access to accurate 3D models and 2D blocks. A great resource for the Architectural community… and its free, just need to sign in with your Autodesk account.
