Inventor | Annotation Scale in Sketches

imageHere’s a quick tip for anyone needing to alter the size of the text in the Autodesk Inventor sketch environment. It’s always defaulted kind of small, but now that I need glasses to read, it’s a pain.

Tools Tab –> Options Panel –> Application Options

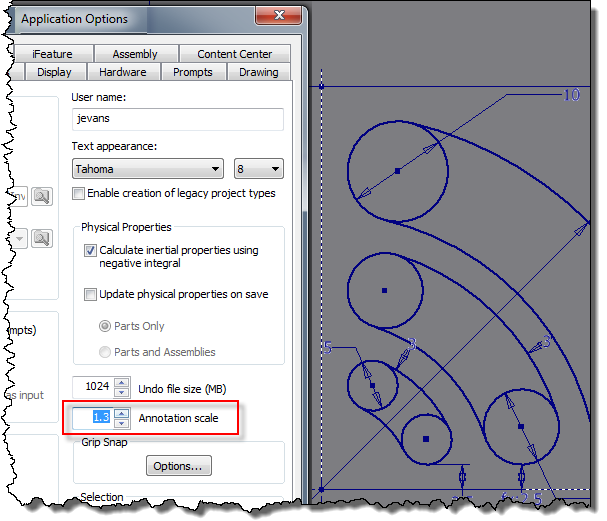

Lower / mid right side, locate the Annotation Scale. Alter this to your liking.

Note: settings between 1 and 2, (such as 1.3) are most likely where you want to set the size. 2 is pretty huge.

The color leave’s a bit to be desired, but that’s a topic for another day.





SNAGHTMLdead2d1
